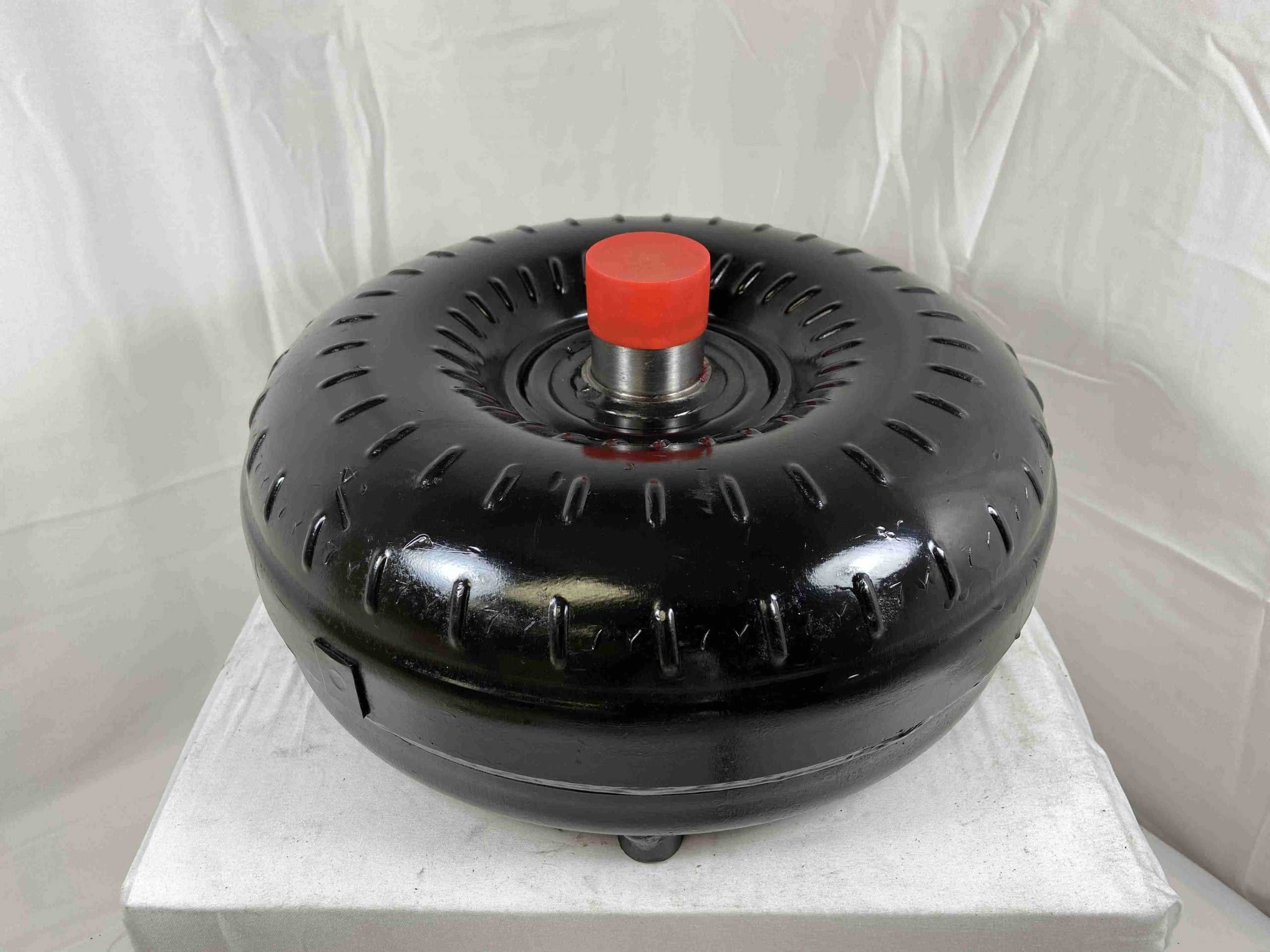

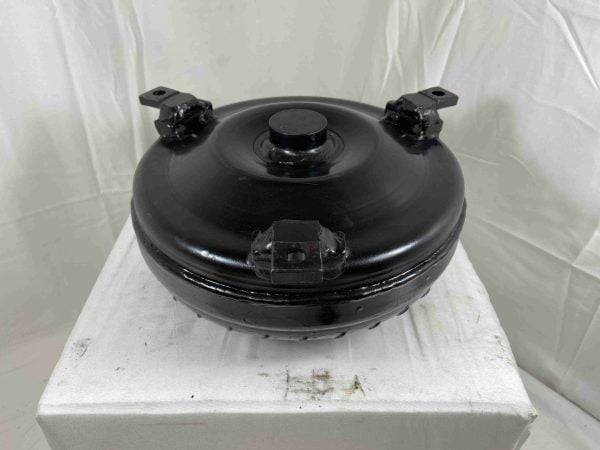

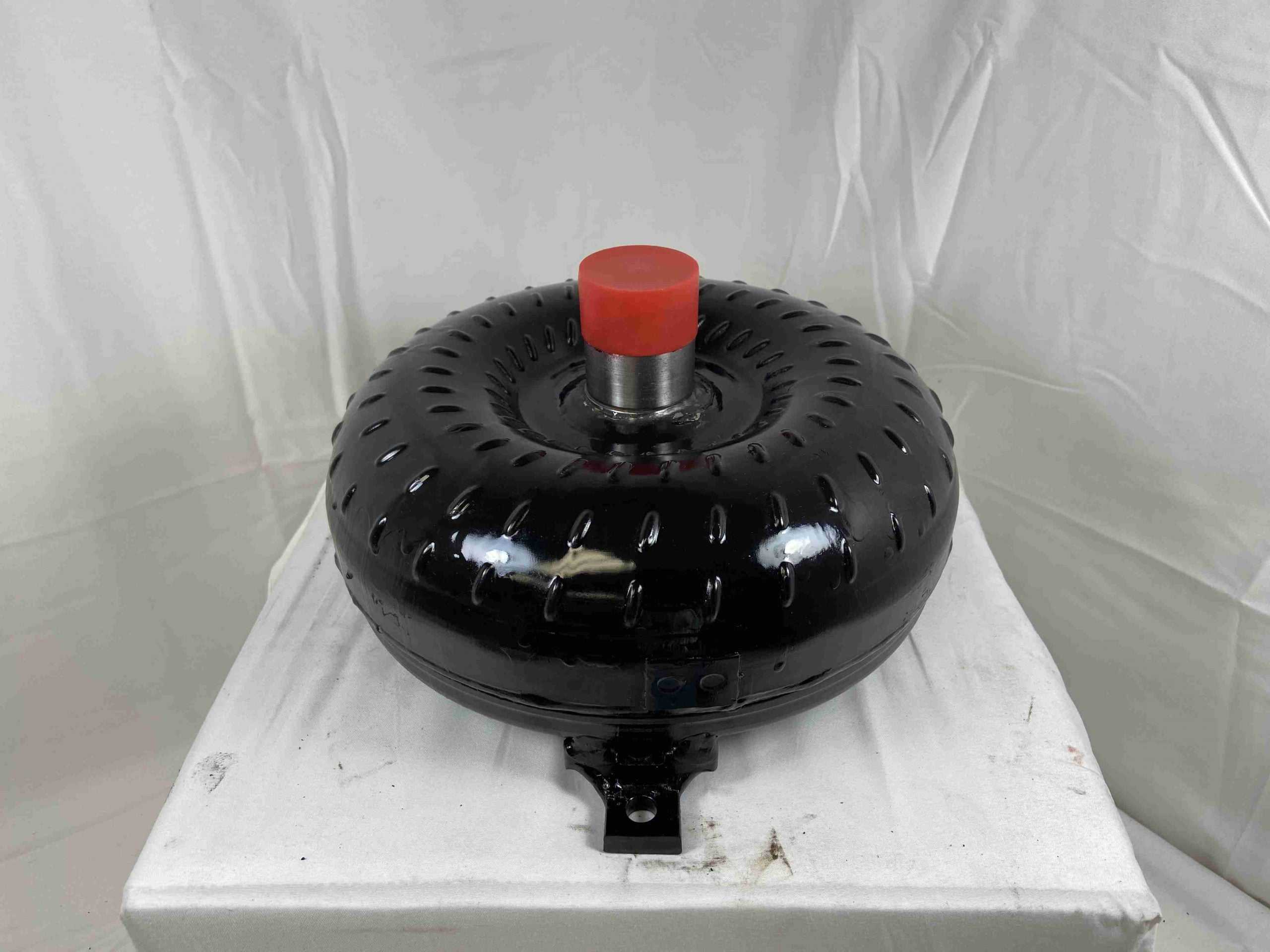

2004R 700R4 298mm Street Bandit 28-3,200 RPM Lock Up GM Torque Converter Part Number 48403

Description GM Chevy 700R4 200R 298mm Part Number 48403 STREET BANDIT SERIES 298mm for LT type Engines For the 3 step Input Shaft SUPER LIGHTWEIGHT Lock Up Converter Stall Range: 2,800 – 3,200 RPM 9.6 inch Core Bolt Circle: 10.75 inches 27 Spline Input Shaft (Count The Smaller splines, Top of Each tooth) Hardened Chrome Moly Hub Torrington Style Incased Bearings Modified Heavy Duty Stator * Extreme Duty Lock Up * We Deleted the Need for the End of the Input Shaft O-Ring * Lock Up is sealed on the back side of our Turbine Hub 1.703 inch Crank Pilot Precision CNC Machined Bolt Size: 3/8 X 16 TPI (GRADE 8 ONLY) No – Anti-Balloon Plates Quality Inspections at Every Step Leak & Pressure Tested Digitally Balanced 4 Corner tac Welded Fins or Furnace Brazed Tip : Use Type F Transmission Fluid For Best Results. TIP : Always Use an Additional Transmission Cooler TIP : Use Blue Loctite Great for Choppy Cams and light weight vehicles MADE IN THE USA * NOTE : ALL Advertised stalls are based on a specific vehicle’s setup. All stall ranges will vary depending on your vehicle’s setup. Please contact us for more information. – 888-267-7464 Building High Performance & Racing Converters Since 1970! We recommend upgrading to an “Out Law Series” torque converter if you have any power adders like Nitrous (NOS), Turbocharger(s), Supercharger, or a Trans Brakes Warning: Cancer and Reproductive Harm – www. P65warning.ca.gov
